OPS: 3-Stage Hydraulic Isolation System

OPS: 3-Stage Hydraulic Isolation System.

Part Number OPS-HYD-ISO-3

Specifications:

• Full Plug And Play System - Machine Information Will Be Required

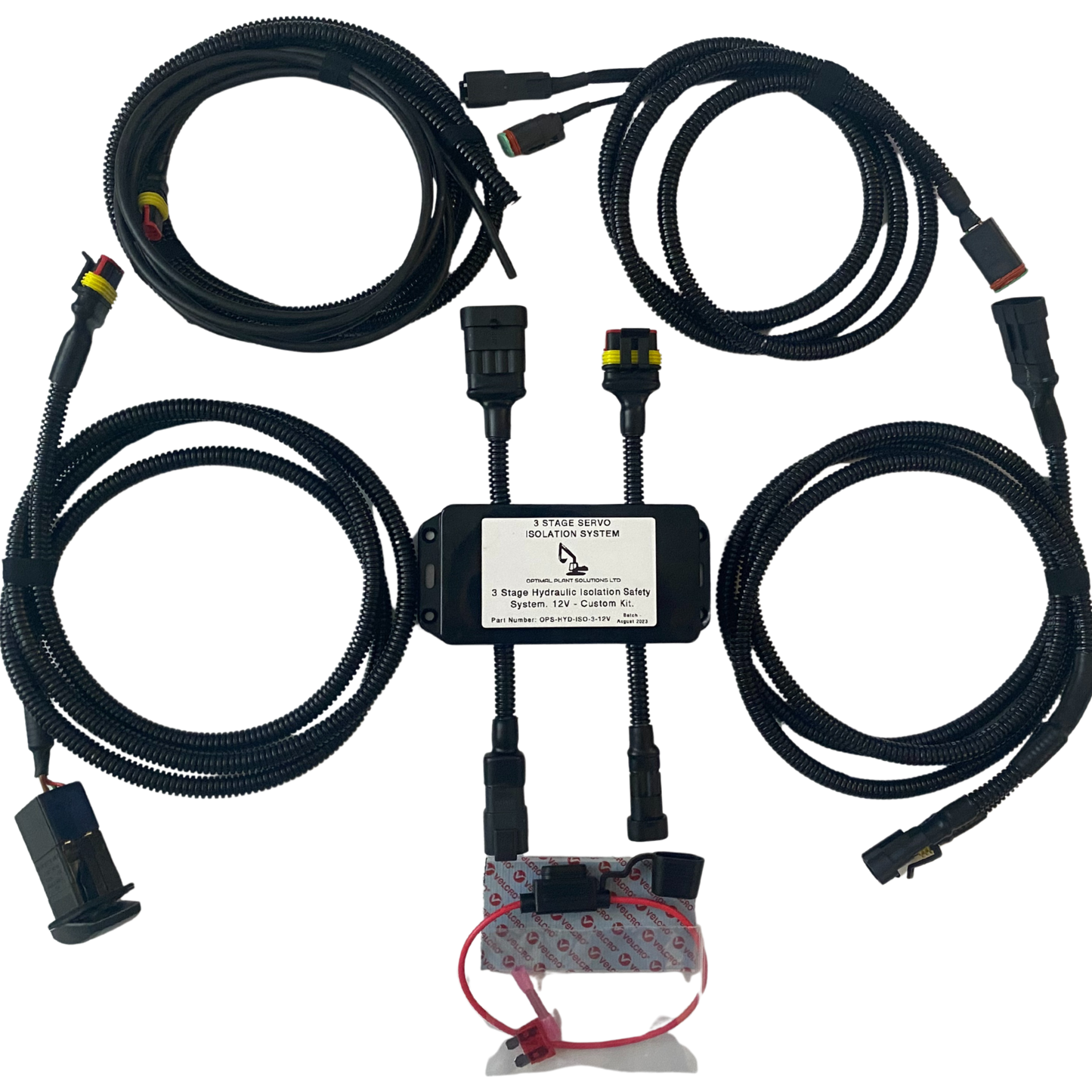

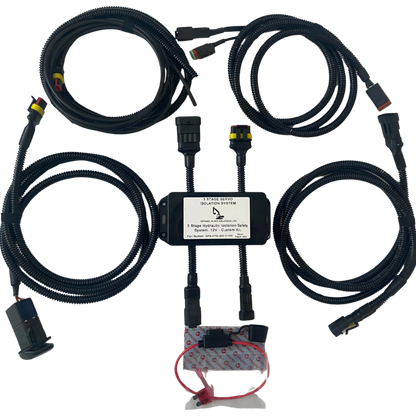

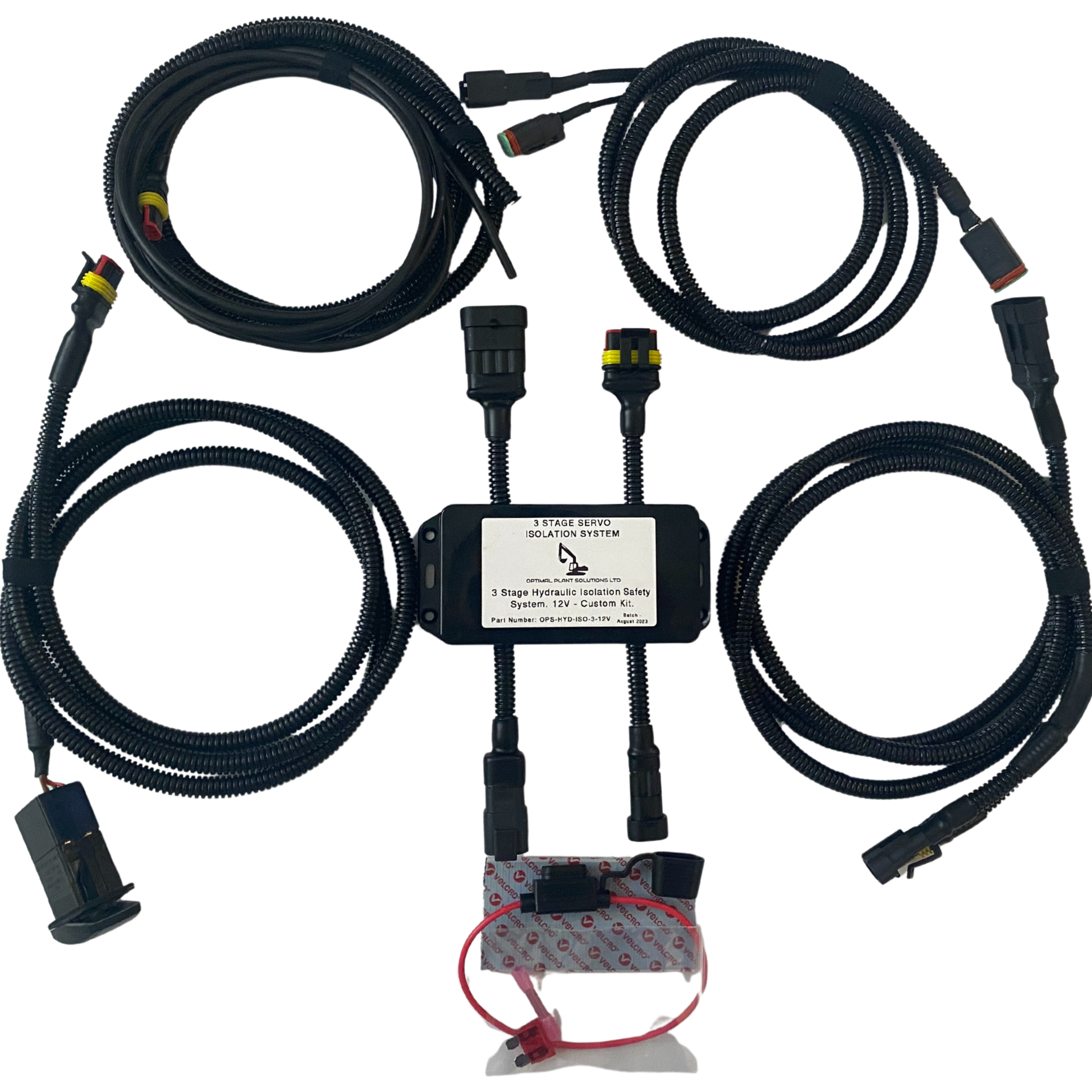

• Kit Includes: Control Box, Momentary Rocker Switch With Harness, Machine Isolation Link Plug And Play Harness, Seat Belt Harness.
• Enhances Safety By Adding An Additional Function's To Activate Live Hydraulics.

System Function:

In a normal system Hydraulics will become live once Dead man lever is switched. The addition of a 3-Stage Isolation System operates as follows:

• Start machine
• Connect Seatbelt
• Operate Dead Man Lever As Normal

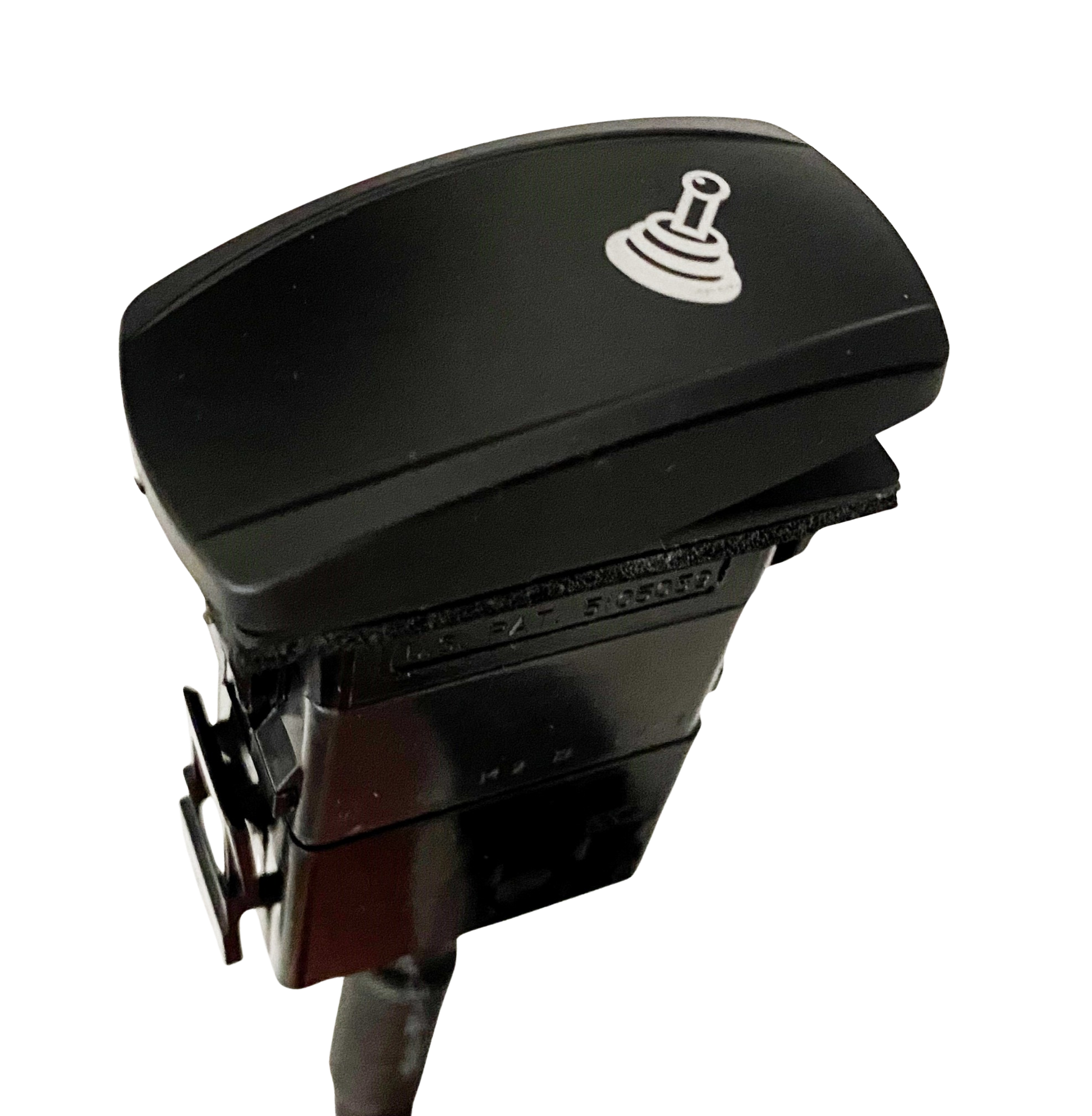

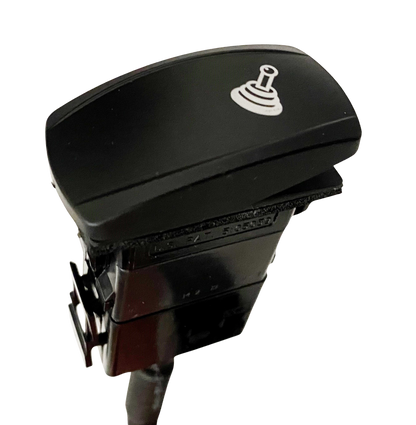

• Rocker momentary switch will now illuminate GREEN
• Click switch
• Hydraulics are now live.
• If the operator removes seatbelt or De-activates dead man lever this will isolate the machine hydraulics – The isolation system will reset and the sequence is now required again to activate the machine hydraulics.
